Model MP2000 - Continuous Proportioning Controller
- Programmable relay outputs for orientation, hysteresis, and fail-safe function.
- EEPROM stores all parameter value permanently.
- Volume conversion for volumetric indications.
- Easy-to-read graphic indication and 4-digit LED.
- Build-in test circuit for signal ( 4 to 20mA DC)..
** If purchasing replacement part, just give us the serial number and we will supply the correct part.**
General Description
The MP2000 is a microprocessor-based controller. The MP provides analog and digital indication of level and/or volumetric contents of tank. Easy selection and input menu with built-in mathematical equations for seven common tank configurations provides for precise volumetric conversion.
Advanced Functions

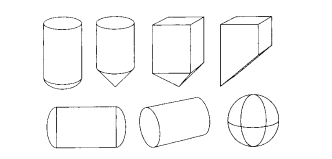

Volume Conversion: A display is provided which is proportional to the level of the tank for those seven common tank shapes.
Non-Linear Profiling: If the tank design does not match one of the seven common tank shapes, it can be programmed as ten separate break-point settings. The tank profile is achieved by entering the level and corresponding volume for the breakpoints. A maximum of ten break-points (including zero and span point) can be defined in this manner.
Fail-Safe

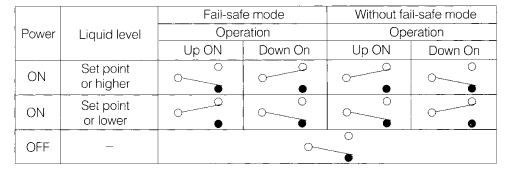

Fail-safe: Fail-safe mode is programmable for alarm outputs. Relay operations are completely changed when you choose the fail-safe mode. The default is without fail-safe mode. See the below table for operating differences.
Click on the buttons for full Nohken Specification catalog Sheet and User Manual

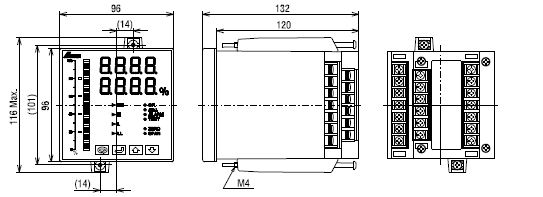

Catalog User ManualTechnical drawings of Nohken Model MP2000 Continuous Proportioning Controller.
MP2000 Controller

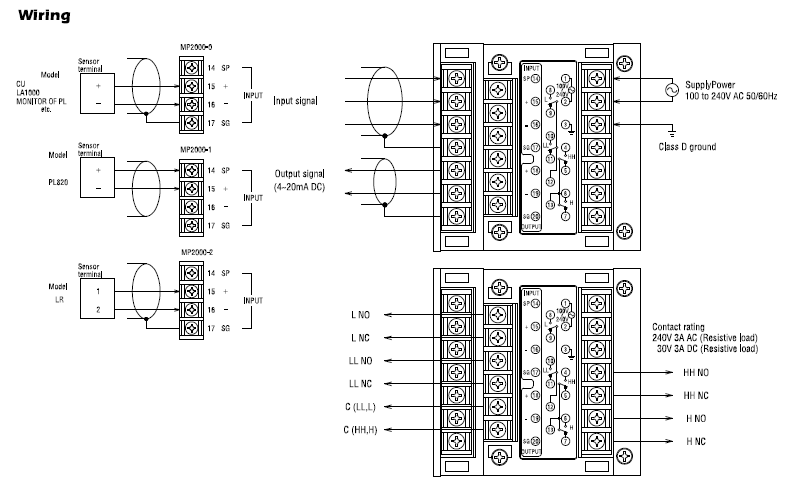

Wiring Diagram for MP2000
For ordering replacement part, please supply full serial number
